Transformer 230 V to 460 V

$500.00

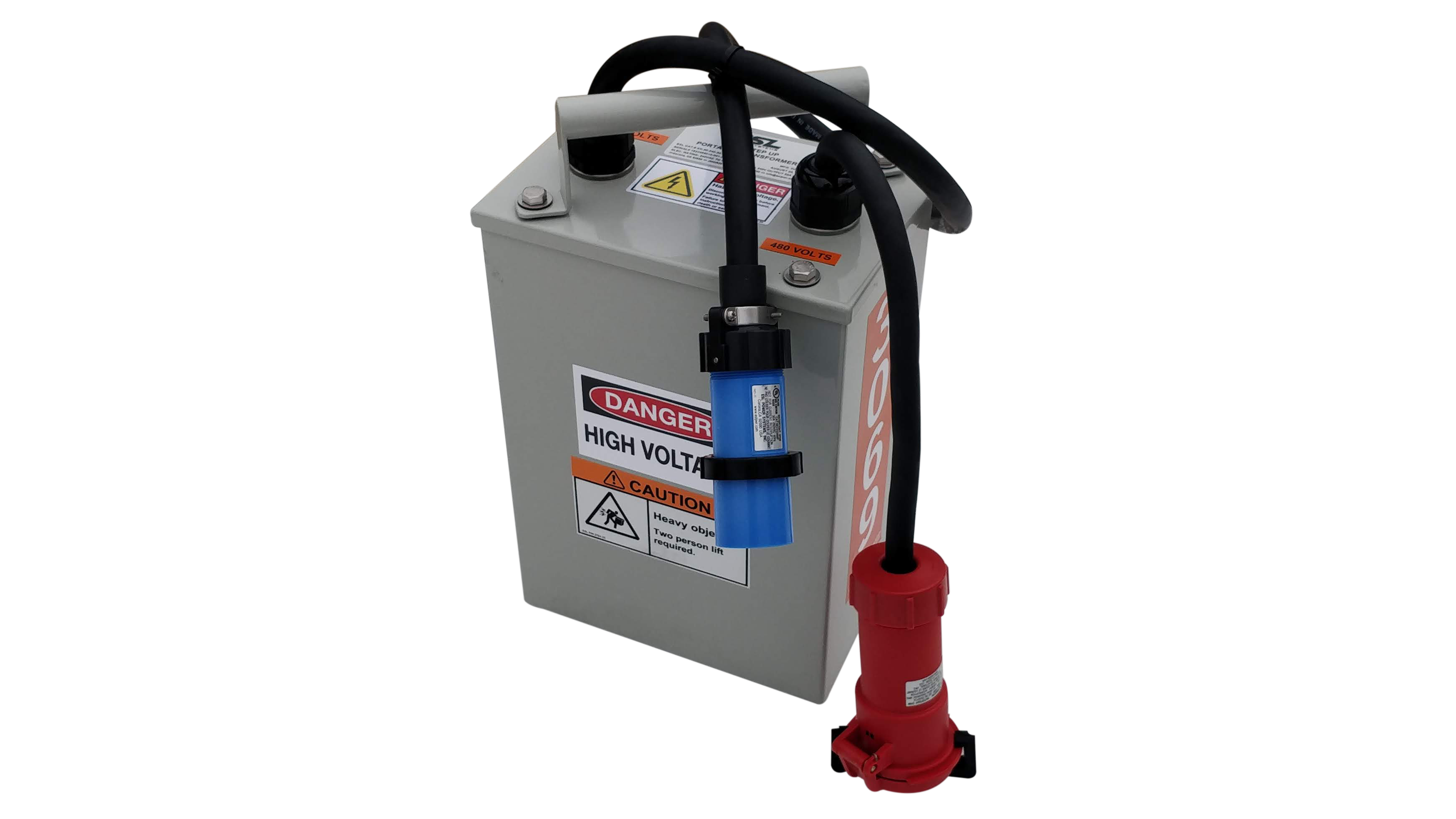

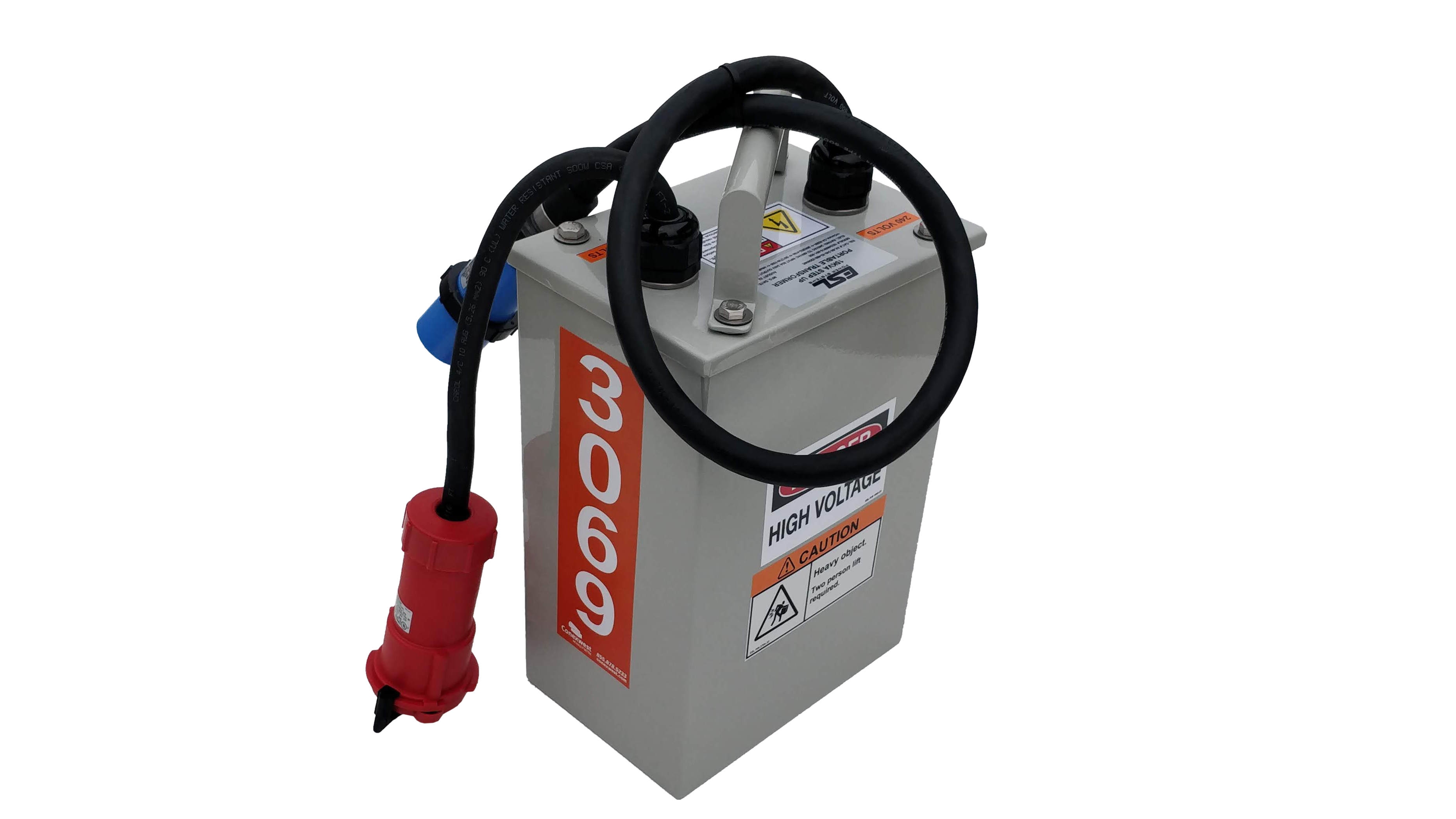

The modular transformer for shipping containers is the easiest way to add dual-voltage capability – step up from 230 V to 460 V instantly.

Specifications:

  • 16 ga, 304 SS, powder coated gray (RAL7038) enclosure
  • 15 kVA 240 V-480 V non-interlocked unit
  • 50 A 240 V, A/C plug 32 A 480 V A/C cord connector
Add to wishlist
Category:
Description
  • Description

Each modular transformer includes 8/4 SO cable with black 60˚C (140˚F) rated rubber insulation. The dual-voltage transformer is mounted to a plate/bracket, with optional circuit breaker and high-voltage receptacle attached. Standard receptacle conforms to CEE-17 design.

Other receptacles may be furnished by special order.

Weight: 63.5 kg (140 lbs) Field-Installed kit (with CB2) P/N 76-00670-00 Field-Installed kit (without CB2) P/N 76-00670-02.
